Perkins

P10912

Cross Reference:

02/202510, 02/202100, 02/201640, 02/201900, 02/202360, 02/2023650, 4225113M91, 4224441M91, 4223901M91, 4223101M91, 4225392M91, U5MW0192, U5MW0189, U5MW0178, U5MW0154, U5MW0164, 239-6142

Engines:

Perkins 1004.40, 1004.40T, 1004.42, 1006.60, 1006.60T

Machine Application:

190, 190HF, 190T, 190THF, JS200W-P, 412S, 416, 416B, 436, 436B, 530, 530FS, 530SXL, 540 SUPER AG, 540FS PLUS, 540SXL, 810B, 810C, 1110, 1110C, 4225, 4235, 4245, 4255, 4325, 4335, 4345, 4355, 6235, 6245, 6255, 6260, 6270, 6280, 6290, 8210, 8925, 8926, 8937, 8939, 8925T, 8926T, 8937T, 8939T

Comments:

Without Pulley

P20018

Cross Reference:

U5MW0097, U5MW0023, 41312487, 41312784, 41312154, 41312484, 41312159, 41312495, 41312494, 41312591, 41312416, 41312488, 41312785, 41312874, 41312505, 41312589, 41312357, 41312158, 41312497, 41312536, 3641823M91, 742558M91, 739527M91, 747542M91, 747542R91, 3641338M91, 747542M1, 739527M1, 3641823R92

Engines:

Perkins 3.144, 3.152, 3.152.2, 3.152.4, D3.152, T3.152.4

Hyster:

S30A, S40C, S50C, C4000, C4500, C4830, C5000, C5500, C5830, R4000, R45000, R5500, T19C, TL21C, 20, 20B, 20C, 20D, 20E, 20F, 30B, 30E, 30H, DX35, 35, 40, 40E, 40U, 133, 134, 135, 148, 150, 152, 154, 200, 200C, 203, 205, 230, 235, 235-01B, 240, 244, 245, 248S, 250, 253, 254, 254S, 255, 340, 342, 350, 352, 353, 355, 356, 360, 550, 2135, 2203-7, 2205-7, 2244, 2345, 4000

Comments:

With Pulley. Hub 63.00mm hole centres

P10278

Cross Reference:

293515A1, 02101828, 02101379, 4222002M91, 3637468M91, 3637468M1, 3641263M91, 3641035M91, 3638998M91, 3638999M91, 4222002R92, 4222002R91, U5MW0108, 41313237, 41313227, 41313218

Engines:

Perkins 1004.4, 1004.4T, 1004.40T, 1004.42,4.248, 4.236, T4.236, 4.41LM, A4.41

Machine Application:

Case IH Tractor:

C80, CX80, C90, CX90, C100, CX100

Massey Tractor:

365, 375, 383, 390, 393, 398, 1007, 3050, 3055, 3060, 3065, 3070, 3075, 3080, 4225, 4235, 4240, 4243, 4245, 4255, 4265, 4325, 4335, 4655, 6150

Comments:

Without Pulley

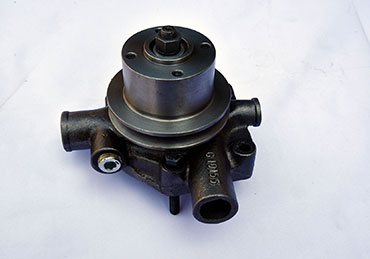

P10155

Cross Reference:

747597M91, 3641250M91, 3637372M91, 731638M91, 731807M92, 739692M91, 740611M91, U5MW0055, U5MW0089, U5MW0061, 41312574, 41312167, U5MW0010, 0994658, 41312511

Engines:

Perkins 4.192, D4.203

Heavy Duty Machine Application:

DA2.0, DA2.5, DA3.0, GDC060, GDC080, GDP040, GDP060, GDP080, 460, 1022, 6070, 6075, 6080, D25P, D30P, 6000, 30, 40B, 50, 65, 155, 158, 165, 260, 265, 300, 304, 560, 765, 601

Agricultural Machine Application:

Massey Tractor:

30, 40, 50, 65, 165, 255

Combine:

300

Industrial Machine Application: Massey:

30, 40, 50A, 302, 304, 356, 765, 3165

Skid Steer Loader Application: New Holland:

L779, L783, L785

Comments:

Without Pulley

P11272

Cross Reference:

U5MW0194, U5MW0206, U5MW0208, 4226913M91, 4225069M91, 4225308M91, 707646A1, 4131A062, 225-8016, 354-4754, 485-4895 (Caterpillar)

Engines:

Perkins 1104 Series

Machine Application:

Massey Ferguson:

5425, 5435, 5445, 5460, 6445, 6455, 6460, 6470, 8925, 8926, 8947

McCormick:

CX105, CX75, CX85, MC105, MC115, MC95

Landini:

Ghibli85, 95, 105, Mythos105, Powerfarm75, 85, 95, 105, REX75, 85, 95, 105, Vision85, 95, 105

Comments:

Without Pulley

P20113

Cross Reference:

293515A1, 02101828, 02101379, 4222002M91, 3637468M91, 3637468M1, 3641263M91, 3641035M91, 3638998M91, 3638999M91, 4222002R92, 4222002R91, U5MW0108, 41313237, 41313227, 41313218

Engines:

Perkins 1004.4, 1004.4T, 1004.40T, 1004.42, 4.248, 4.236, T4.236, 4.41LM, A4.41

Machine Application:

Case IH Tractor:

C80, CX80, C90, CX90, C100, CX100

Massey Tractor:

365, 375, 383, 390, 393, 398, 1007, 3050, 3055, 3060, 3065, 3070, 3075, 3080, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4265, 4325, 4335, 4655, 6150

Comments:

Without Pulley

P20024

Cross Reference:

U5MW0097, U5MW0023, 41312487, 41312784, 41312159, 41312495, 41312494, 41312591, 41312416, 41312488, 41312785, 41312874, 41312505, 41312589, 41312357, 41312158, 41312497, 41312536, 3641823M91, 742558M91, 739527M91, 747542M91, 747542R91,3641338M91, 747542M1, 739527M1, 3641823R92

Engines:

Perkins 3.144, 3.152, 3.152.2, 3.152.4, D3.152, T3.152.4

Machine Application:

Dominator 38/58, Mercator, Mercury Combine, 2T, 3T, 350

Hyster:

3S30A, S40C, S50C, C4000, C4500, C4830, C5000, C5500, C5830, R4000, R45000, R5500, T19C, TL21C, 20, 20B, 20C, 20D, 20E, 20F, 30B, 30E, 30H, DX35, 35, 40, 40E, 40U, 133, 134, 135, 148, 150, 152, 154, 200, 200C, 203, 205, 230, 235, 235-01B, 240, 244, 245, 248S, 250, 253, 254, 254S, 255, 340, 342, 350, 352, 353, 355, 356, 360, 550, 2135, 2203-7, 2205-7, 2244, 2345, 4000

Comments:

With Pulley. Hub 63.00mm hole centres

P10797

Cross Reference:

P3

P20226

Cross Reference:

50110, PERKINS P6

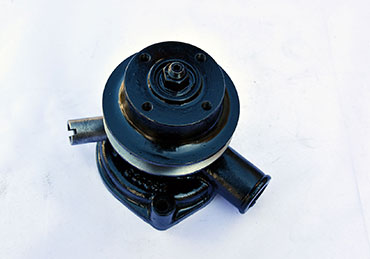

P20106

Cross Reference:

PERKINS 4.270
